ID
|
module
|
name
|
Models and specifications
|
-
|
practical training
boyfriend
|

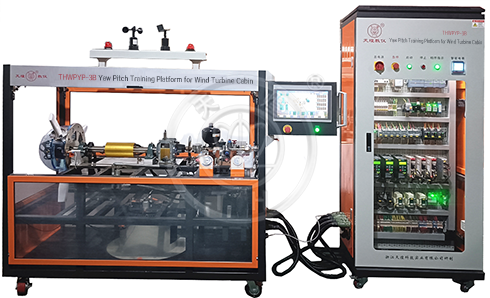

Training platform
|
Adopting frame structure, four sides with transparent visual door, switch sensor device, adopting flip-top design, increasing the operating space; the bottom with universal wheels
|
-
|
nacelle
staircase
(for residential buildings)
|
Mainly includes hub, positioning disc, positioning mechanism with detection sensor, spindle, inductive proximity switch for spindle speed detection, double elastic diaphragm coupling, etc. The spindle is 720mm long and is mounted on two 50mm housed bearings with grease nipples.
|
-
|
3kW gearbox, low-speed input hollow shaft, high-speed output sealed output shaft, including visible window, lubricating oil and oil temperature monitoring sensor, temperature sensor for RTD Pt100 temperature transmitter
|
-
|
Single-acting brake caliper, max. pressure 6.5 MPa
|
-
|
Permanent magnet alternator: power 300W, rated speed 750r/min, equipped with temperature sensor.
|
-
|
Spindle drive motor:
Rated power 750W; reduction ratio 58.1;
Drive form: chain drive;
|
-
|
Slip Rings: Contains servo motor control wires and related signal wires.
|
-
|
Vibration sensor: range 0-10mm/s, variable output 4-20mA, with magnetic fasteners
|
-
|
Dynamic torque speed sensor, speed range: 0-1000r/min, analogue 4-20mA output; torque range: 0-10N.m, accuracy ±0.5%
|
-
|
turbine
Staircase
(for residential buildings)
|
Tower unit: with 360° marking, home calibration sensor
|
-
|
Torsion Limit Switches
|
-
|
Yaw position monitoring: 1024 pulses/revolution incremental optical encoder
|
-
|
Steel slewing ring with external teeth: 475 mm external diameter, 93 external teeth 20°, with grease nipple.
|
-
|
Geared motor: rated frequency 50Hz, rated power 200W, output torque 52N.m.
|
-
|
Single-acting brake caliper, max. pressure 6.5 MPa, brake disc, diameter 220 mm, thickness 3.5 mm
|
-
|
pitch control
staircase
(for residential buildings)
|
Servo motor, rated power 0.2KW, rated speed 3000r/min, maximum speed 6500r/min, rated torque 0.64Nm, encoder specification 17bit, protection grade IP67; right-angle planetary reducer, reduction ratio 100:1
|
-
|
3 analogue paddles, home and limit sensors, transparent cover and other mechanical components
|
-
|
wind simulation
staircase
(for residential buildings)
|
Wind Speed Module
|
-
|
Wind Module
|
-
|
red flashing light
|
-
|
hydraulically
detent
systems
|
miniature
hydraulic station
|
Motor: rated frequency 50Hz, rated voltage three-phase AC 380V, rated power 750W;
Hydraulic pump rated displacement 1.6mL/r;
Pump rated pressure 7MPa;
Fuel tank: capacity 8L;
Specification: A3 steel plate, matt dense pattern spray moulding
Accessories: cleaning caps, air filters, oil temperature and level gauges, level relays, temperature sensors, etc.
|
-
|
hydraulic oil
|
L-HL32
|
-
|
Hydraulic valve plate
|
45# steel, nickel-plated surface, with pressure measurement interface
|
-
|
accumulator
|
Bladder type, capacity 1L, working pressure 10MPa
|
-
|
Oil return filter
|
Filtration accuracy: 10 micron, with check valve, maximum flow rate 60L/min
|
-
|
Direct-acting relief valves
|
Pressure regulating range 20 to 125 bar
|
-
|
Direct-acting relief valves
|
Regulating range 3.4 to 34.4 bar
|
-
|
2-position 2-way solenoid-operated directional valves (normally closed)
|
DC24V with manual control
|
-
|
2-position 2-way solenoid-operated directional valves
|
Normally closed two-way check type, DC24V, with manual control
|
-
|
2-position 2-way solenoid-operated directional valves
|
Normally open two-way check type, DC24V, with manual control
|
-
|
Pressure Relay
|
0.8-10MPa
|
-
|
check valve
|
Tapered, opening pressure 0.3bar
|
-
|
Needle Valve Shutoffable Throttle
|
Diameter 08, max. flow rate 18L/min
|
-
|
manual pump
|
Displacement 4cc (with booster)
|
-
|
Seismic Pressure Gauge
|
0-10MPa (with bracket), built-in methyl silicone oil
|
-
|
Pressure Transmitter
|
0-10MPa, variable output 4-20mA
|
-
|
Hydraulic hose
|
Inner diameter 5mm
|
-
|
electronic
containment
systems
|
Electrical consoles
|
Industrial power socket; with visual door, convenient to observe the electrical working status; with universal wheels at the bottom, convenient to move.
|
-
|
electronic
containment
staircase
(for residential buildings)
|
Red Disconnect Switch
|
-
|
Emergency Stop Button Switch
|
-
|
Green start button with indicator light
|
-
|
Green phase sequence indicator
|
-
|
Leakage protector: 4P
|
-
|
Air Circuit Breaker: 1P
|
-
|
fuse
|
-
|
Switching power supply: DC24V, 240W
|
-
|
Phase Sequence Protector
|
-
|
Overload protection relays
|
-
|
Industrial switch: 5 ports
|
-
|
Three-phase AC input reactors:
|
-
|
Three-phase power filter: 6A
|
-
|
Safety Relay: MSR127T, AB
|
-
|
Schneider AC Contactors
|
-
|
Schneider Motor Protection Circuit Breakers with Auxiliary Contacts
|
-
|
Siemens RS485 Communication Module
|
-
|
Siemens CPU 1214C DC/DC/DC
|
-
|
Siemens digital input/output modules:
SM 1223 DI16/DQ16 x Relay Outputs
|
-
|
Siemens analogue input module: SM 1231 AI4
|
-
|
Siemens Analogue I/O Module: SM 1234 AI4/AQ2
|
-
|
HMI equipment
|
15.6" TFT display, resolution 1920 x 1080, 262K true colour, 4G system storage, 1 x 10M/100M adaptive network port, 1 x USB2.0, 1 x DB9 serial port
|
-
|
converter
|
Three-phase AC 380V, PROFINET communication
Control mode: vector control, V/F control
|
-
|
BOP Panel
|
With menu navigation function, switching function, parameter display function, inverter diagnostic function, etc.
|
-
|
servo drive
|
Pulse version, power 0.2kW
|
-
|
Grid-connected inverters
|
AC 220V output, rated power 300W
|
-
|
Three-phase rectifier
|
Including three-phase rectifier bridge, filter capacitors and heat sinks
|
-
|
smart meter
|
Three-phase 380V/5A, voltage, current, frequency, active power, reactive power and other parameters measurement function, RS485 output
|
-
|
Single DC Power Harvester
|
DC: 0-100V, 0-10A, RS485 output
|
-
|
Single-phase AC power harvester
|
AC: 0-500V, 0-5A , RS485 output
|
-
|
kit
|
torque spanner
|
5-20N.m (with ratchet set)
|
-
|
torque spanner
|
G series interchangeable head preset 20-100 N.m, (incl. 6 torque spanner open ends)
|
-
|
Vernier calipers with meter with depth measurement
|
Measuring range: 0-200mm; index value: 0.01mm
|
-
|
micrometer
|
Measuring range:0-25mm
|
-
|
Test stand
|
Includes alignment pointers
|
-
|
Magnetic Holder
|
1 large, 2 small (including pads)
|
-
|
Lever Type Percentage Gauge
|
Measuring range: 0-0.8mm, index value 0.01mm
|
-
|
dial gauge
|
0-10mm
|
